The Asiarack beta 300 is the first batch of Asiarack to be released, On August 15, 2024. with a total of only 300 units available. Users have the option to choose between 1U and 3U length side panels for customization or direct installation onto a casing.
Due to the good market performance, no further changes are needed. Beta300 has also become an official product.
Technical Specifications:

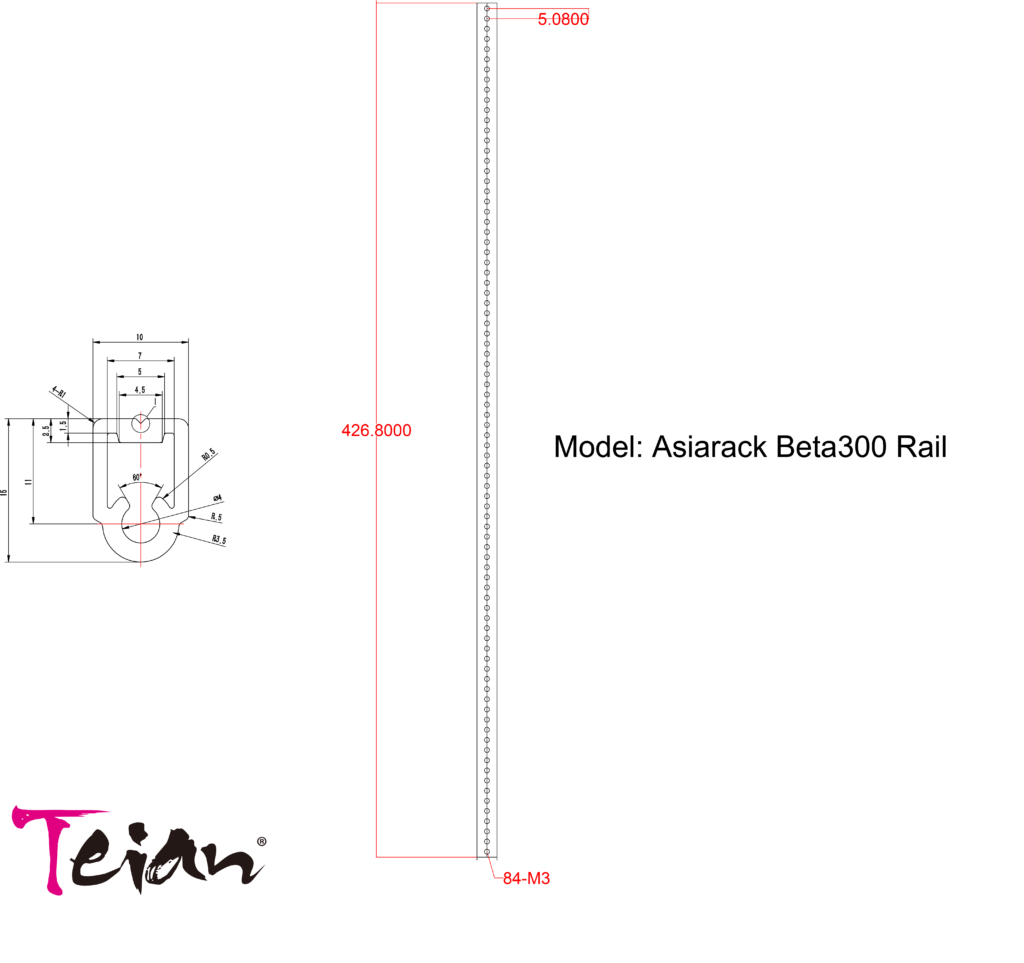

Asiarack beta300 rail:
Rail length: 426.8mm
Top screw holes: M3 x 84
Side screw holes: M5 x 14mm x 2
Material: 6061 aluminum alloy with anodized surface

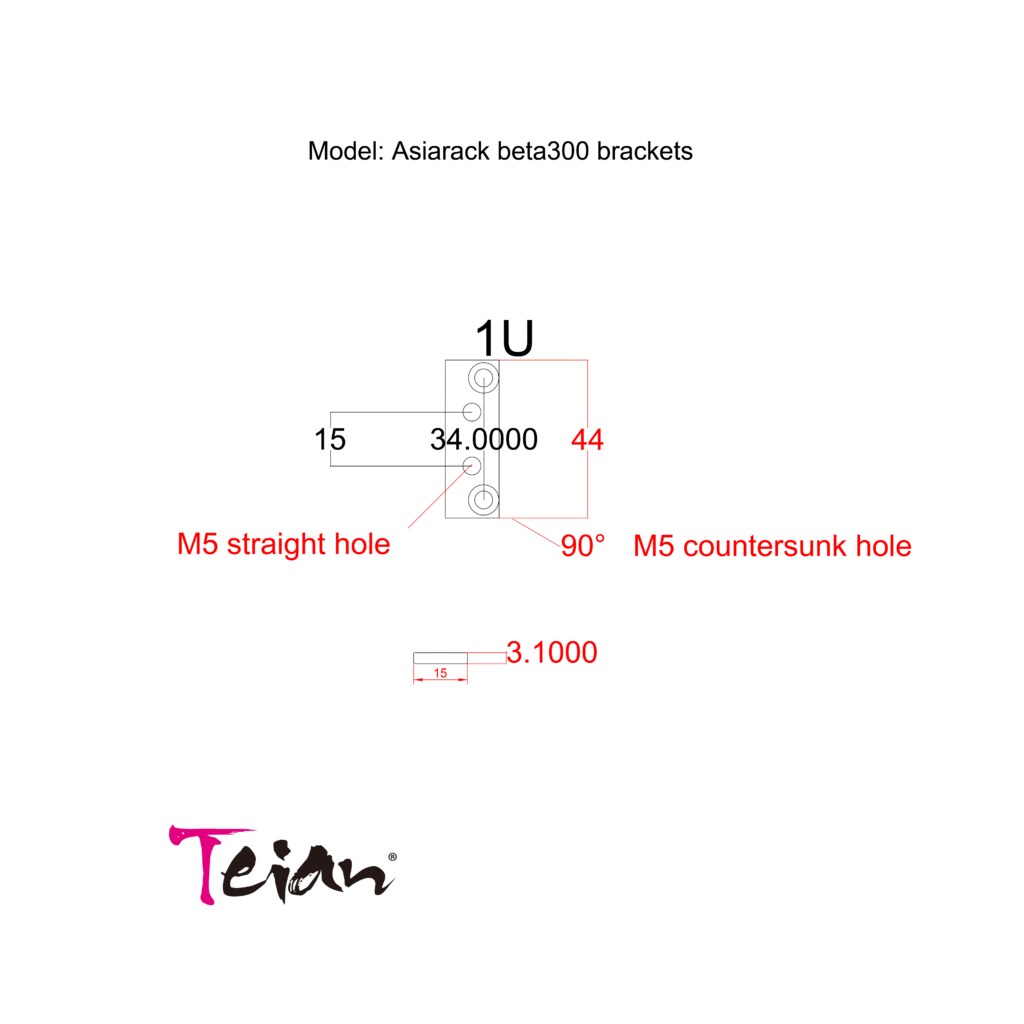

Asiarack beta300 bracket 1U intellijel:
Tall: 44mm
wide:15mm
thick:3.1mm
Screws : M5 countersunk + M3 Hexagonal flat head screws
Material: 6061 aluminum alloy with anodized surface

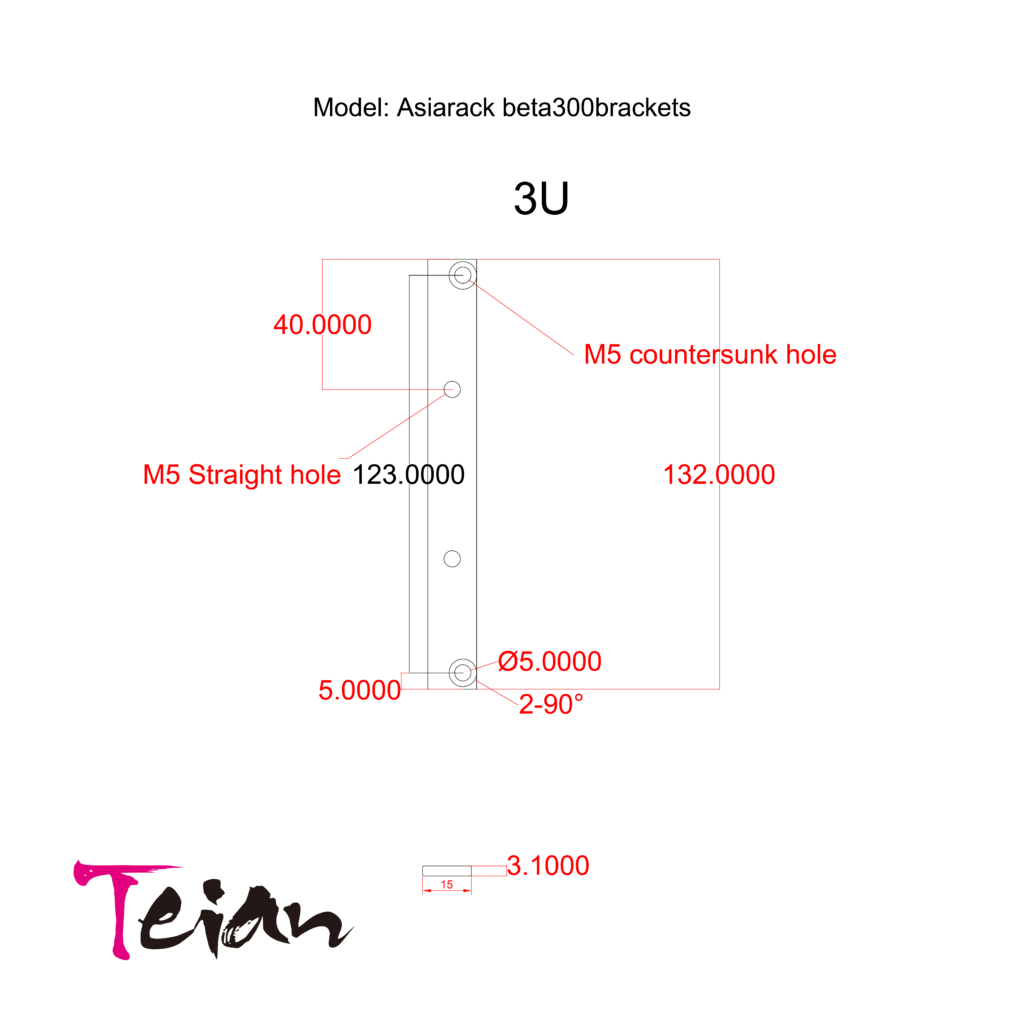

Asiarack beta300 bracket 3U:
Tall: 132mm
wide:15mm
thick:3.1mm
Screws : M5 countersunk + M3 Hexagonal flat head screws
Material: 6061 aluminum alloy with anodized surface
